IQ-CAM-12
Dual-facing video safety
You want the cab on record as standard.
- 1080p road and 720p infrared cabin, both built in
- Machine-vision distraction detection on the cabin lens
- Up to 4 more cameras for side, rear and cargo
Commercial video safety
Three cameras that
Three cameras that
tell the truth.
IQ-CAM is a family, not a device. Road-facing for the fastest rollout, dual-facing when you want both halves of a claim answered, or four channels for the routes where blind spots cause the claims.
See it work
The camera, and what it caught.
3 cameras
Start with the one sentence that decides it.
Each of these is a different device, not a trim level. Pick the line below that sounds like your fleet.
IQ-CAM MC30
Forward video safety
You want forward proof on the whole fleet by Friday.
- Road-facing 1080p, about a 15-minute install
- About 14 days onboard on a 128 GB card
- One-press SOS flags the moment and alerts dispatch
IQ-CAM ME40
Four-channel video safety with ADAS + DMS
Your claims come from the angles a forward camera can't see.
- Four channels: forward, cabin, side and rear
- ADAS and DMS, so the road and the driver are both watched
- About 4 weeks onboard on a 512 GB card
IQ-CAM family
How the three cameras differ
Same dashboard, same evidence workflow, same month-to-month terms. Everything below is a line where the three cameras genuinely part ways.
| Feature | IQ-CAM-12Dual-facingSee IQ-CAM-12 | IQ-CAM MC30Forward video safetySee IQ-CAM MC30 | IQ-CAM ME40Four-channel + ADASSee IQ-CAM ME40 |
|---|---|---|---|
| What it is for | |||
| Best for | Fleets that want both halves of a disputed claim answered | Delivery vans and small fleets that need forward proof, fast | Long-haul and high-risk fleets where the blind spots cause the claims |
| What it tracks | Vehicles, the road, and the driver | Vehicles and the road ahead | Vehicles, the road, the cab, and both sides |
| Cameras and coverage | |||
| Camera channels | 2 built in, plus up to 4 auxiliary | 2 channel, road-facing | 4 channel: forward, cabin, side, rear |
| Road-facing video | 1080p, adjustable angle | 1080p forward proof | 1080p forward, part of the 360° set |
| Cab-facing video | Built in, 720p with infrared | Optional add-on camera, not fitted as standard | Built in, with driver monitoring |
| Side, rear and dome cameras | Up to 4 auxiliary cameras | Optional side or cargo camera | Optional side, rear and mini-dome |
| 360° blind-spot coverage | – | – | ✓ |
| Onboard footage retention | microSD behind an anti-tamper panel | About 14 days on a 128 GB card | About 4 weeks on a 512 GB card |
| What the camera watches for | |||
| ADAS: collision and lane departure | – | – | ✓ |
| DMS: distraction and fatigue | Machine-vision distraction detection | – | Full driver monitoring, real-time |
| Live multi-channel view in the app | Live video and snapshots | Live view, single channel | Live view across all channels |
| Install | |||
| Typical install time | Professional fit, booked around your schedule | About 15 minutes on an OBD or power connector | Professional fit, add-on cameras at the same visit |
| Power | |||
| Power source | Vehicle, 12V to 24V hardwired | OBD or power connector | Vehicle, hardwired |
| Positioning and network | |||
| How it reports position | GPS with AGPS | Built-in GPS | Built-in GPS |
| Cellular | 3G and 4G LTE | 4G LTE | 4G LTE |
| Environment | |||
| Operating temperature | 0°C to +70°C | Cab rated | Cab rated |
| Size | 115 x 70 x 51 mm | – | – |
| Every AirIQ product | |||
| Solution sheet | IQ-CAM sheet | MC30 sheet | ME40 sheet |
Only the lines where these 3 differ are shown. Everything they share, including the dashboard and month-to-month terms, is on the full comparison.
Whichever you pick
Three cameras, one way of working.
The hardware differs. What happens after an event does not: the same dashboard, the same evidence workflow, the same terms.
1080p
Road-facing HD on every camera in the family
1
Dashboard and one login, alongside your trackers
0
Contract. Month-to-month, no early-termination fee
24/7
Real-time alerts by text or email as it happens
Evidence
When the other story is wrong, you have the footage.
A claim without video is one person's word against another's. Every IQ-CAM records continuously, flags the event as it happens, and saves the clip before anyone reaches for a phone.
- Driver-caused events upload themselves, so the clip is waiting for you
- In the dashboard the same day, ready for your insurer
- Held onboard too, so a lost signal never costs you the clip
- A contested claim gets defended instead of quietly settled
That last one is where the money is. An at-fault finding doesn't end when the claim settles, it follows you into the next renewal and the one after it. Fewer at-fault findings and a coaching program you can document are what an underwriter actually reads.
Detection
It decides in the moment, not after the upload.
Detection runs on the device, so an event raises itself whether or not the truck has bars. Harsh braking, rapid acceleration, speeding and sharp turns are flagged on all three cameras.
- Geofence entry and exit recorded against the trip, on all three
- Distraction raised as an event on the IQ-CAM-12 and the ME40, which carry a cab lens
- Collision and lane-departure alerts on the ME40, which adds ADAS
In the dashboard
Video and assets on one screen.
No toggling between apps to investigate. The clip, the trip and the vehicle sit together, next to the trackers on your vans and the sensors on your trailers.
- Live video and snapshots, driver scorecards, evidence dashboard
- Geofencing and retroactive geofencing across history you already recorded
- Device location sharing, so status-check calls stop
Tech specs
Specifications, camera by camera.
Each block below is that camera's own sheet, and nothing else's. Where a figure is missing it is because AirIQ does not publish it for that camera, not because it matches its siblings.
Cameras
- Front camera
- 1080p HD, adjustable viewing angle
- Driver-facing camera
- 720p HD with integrated IR for night vision and distracted-driving detection, adjustable viewing angle
- Additional cameras
- Connects up to 4 additional cameras
Detection
- Driver events
- Distracted driver, harsh braking, rapid acceleration, speeding, sharp turns
- Location events
- Geofence detection
- Manual
- Event trigger button (SOS)
- Integrity
- Tamper alert, jolt and vibration detection
Connectivity
- Network
- Global bands, 3G and 4G LTE
- Positioning
- GPS with AGPS assistance
Power and battery
- Input
- 12V to 24V via hardwire kit
- Battery
- Integrated. On power disconnect the camera enters standby and records event video only if there is a sudden jolt while the vehicle is off
Physical
- Dimensions
- 115 x 70 x 51 mm
- Operating temperature
- 0°C to +70°C
- Storage temperature
- -10°C to +85°C
- Anti-tamper
- SD card and SIM card access locked behind an anti-tamper panel with a proprietary screw
Transcribed from the AirIQ IQ-CAM-12 spec sheet. IQ-CAM-12 is the dual-facing model in the IQ-CAM family.
Cameras
- Channels
- Two channel, road-facing
- Road-facing camera
- 1080p forward video
- Driver-facing camera
- Optional add-on
- Other add-ons
- Optional side or cargo camera
Storage and evidence
- Onboard retention
- About 14 days on a 128 GB SD card
- Manual capture
- One-press SOS flags the footage and alerts dispatch
- Evidence
- Evidence dashboard, automated reporting, real-time alerts
Install and power
- Install time
- About 15 minutes
- Connection
- OBD or power connector
In your dashboard
- Live
- Live video and snapshots, single pane of glass
- Geofencing
- Geofencing, including retroactive geofencing
- Coaching
- Driver scorecard
- Sharing
- Device location sharing, to cut status-check calls
- Mobile
- Full-feature app on iOS and Android
From the AirIQ IQ-CAM MC30 solution sheet.
AirIQ publishes a solution sheet for the MC30, not a full electrical spec sheet. Voltage, dimensions and operating temperature are not stated, so they are omitted here.
Cameras
- Channels
- Four channel: forward, cabin, side and rear
- Coverage
- 360° blind-spot protection
- Add-on cameras
- Optional side, rear and mini-dome, mixed to suit the route
Detection
- ADAS
- Collision and lane-departure alerts, in real time
- DMS
- Distraction and fatigue detection, flagged in the moment and coachable after
Storage and evidence
- Onboard retention
- About 4 weeks on a 512 GB SD card
- Evidence
- Evidence dashboard, automated reporting, real-time alerts
In your dashboard
- Live
- Live multi-channel view and snapshots, single pane of glass
- Geofencing
- Geofencing, including retroactive geofencing
- Coaching
- Driver scorecard
- Sharing
- Device location sharing, to cut status-check calls
- Mobile
- Full-feature app with live multi-channel view
From the AirIQ IQ-CAM ME40 solution sheet.
AirIQ publishes a solution sheet for the ME40, not a full electrical spec sheet. Voltage, dimensions and operating temperature are not stated, so they are omitted here.
All specifications are typical and subject to change without notice.
Take it with you
Solution sheets
One page each, no form. Forward it to whoever signs off on the fleet budget.
IQ-CAM solution sheetThe IQ-CAM line at a glance · benefits, use cases, and what the cameras watch for
Download →
IQ-CAM MC30 solution sheetForward video safety for delivery vans and small fleets · two channels, 14 days onboard
Download →
IQ-CAM ME40 solution sheetCommercial video safety for long-haul and high-risk fleets · four channels, ADAS + DMS
Download →
IQ-CAM questions
Asked about IQ-CAM.
How many IQ-CAM cameras are there, and how do they differ?
Three. IQ-CAM-12 is dual-facing: 1080p on the road, 720p with infrared on the driver, machine vision watching both, and up to four auxiliary cameras. IQ-CAM MC30 is road-facing only, holds about 14 days on a 128 GB card, installs in about 15 minutes, and has one-press SOS. IQ-CAM ME40 runs four channels with ADAS and DMS, 360° coverage, and about four weeks on a 512 GB card. All three report into the same dashboard, on one login and the same month-to-month terms.
Does IQ-CAM record the driver as well as the road?
On the IQ-CAM-12 and the ME40, yes: a road-facing lens captures what's ahead and a cabin lens captures the cab. The MC30 is road-facing only, with a driver-facing camera available as an add-on. Both views matter for exoneration, the road view shows what happened, the cab view shows your driver did nothing wrong.
What events does IQ-CAM detect?

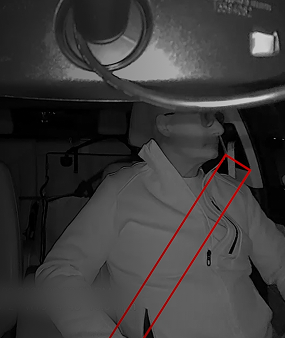

On-device machine vision flags cell-phone use, eating and drinking, smoking, unbelted driving, general distraction, and lens obstruction, with real-time alerts and event clips in your dashboard.
Does IQ-CAM work without cell coverage?
Yes. If connectivity drops, IQ-CAM buffers roughly 4 hours of GPS data and 1 GB of video locally, then uploads when coverage returns. GPS updates every 5 seconds while online.
Will my drivers accept a camera in the cab?
Framing matters. IQ-CAM is the camera that's on your driver's side, its footage protects their record and their CDL when the other party's story is wrong. Coaching workflows recognize good driving, not just exceptions. And if the cab lens is the sticking point, you don't have to start with one. The MC30 is road-facing only, so you can run road video first and add a driver-facing camera later if you decide you want it.
How is footage shared with an insurer?
Driver-caused events upload themselves to your dashboard, so the clip is waiting for you. Open the event, download it, and send it to your adjuster. Incident alerts reach you by text or email as it happens.
How hard is installation?
IQ-CAM installs with a 15-minute quick connect cable: scheduled around your operation so trucks don't sit idle. Add-on cameras (side, rear, dome) are fitted at the same visit.
Is there a contract for IQ-CAM?
No. Like everything AirIQ sells, IQ-CAM is month-to-month with no long-term contract and no early-termination fee.
Put IQ-CAM in one truck. See for yourself.
We'll show you the road view, the cabin view, and the dashboard on a live demo, then you decide. No contract either way.
No contracts·Professional install·Cancel anytime
Prefer to talk? 1-888-606-6444
