Video safety · Dual-facing video safety
Two views.
Two views.
One version of events.
The dual-facing camera in the IQ-CAM family: one lens on the road, one on the cab with infrared for the night shift. Together they answer both halves of a disputed claim.
2
Views on one timeline: 1080p road, 720p cabin
4
More cameras you can add, for side, rear and cargo
IR
Infrared on the cabin lens, so night footage is usable
On-device
Machine vision decides in the moment, with or without a signal
Why dual-facing
The road view shows what happened. The cab view shows who didn't cause it.
A forward camera settles the physics of a collision. It cannot answer what the driver was doing. IQ-CAM-12 answers both, on one timeline.
- 1080p forward with an adjustable viewing angle

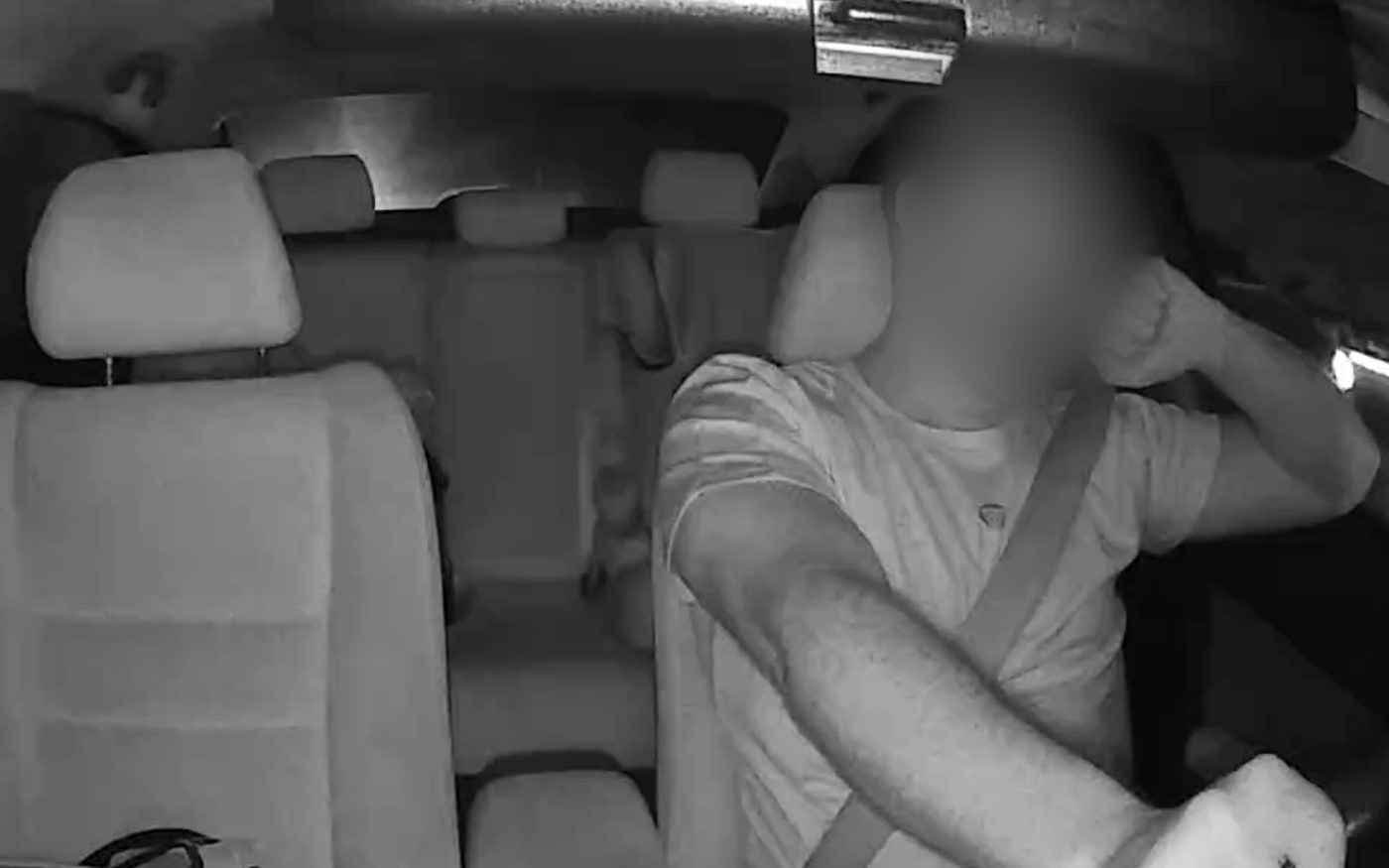

- 720p cabin lens with integrated infrared for night vision
- Both views synchronized, so the clip tells one story
Machine vision
It decides in the moment, not after the upload.
Detection runs on the device, so an event raises itself whether or not the truck has bars. Harsh braking, speeding and sharp turns each become an event.
- Distraction raised as an event with its own clip, not a running feed
- Geofence entry and exit recorded against the trip
- Tamper alerts and jolt detection, even with the vehicle off
Expandable
Four more cameras, when two views aren't the whole truck.
Side, rear and cargo angles connect to the same unit, so a box truck or a tractor can carry the coverage its route actually needs without a second system.
- Connects up to 4 additional cameras
- SD and SIM locked behind an anti-tamper panel with a proprietary screw
- 12V to 24V via the hardwire kit, with an integrated battery for event recording
IQ-CAM family
How the three cameras differ
Same dashboard, same evidence workflow, same month-to-month terms. Everything below is a line where the three cameras genuinely part ways.
| Feature |  IQ-CAM-12Dual-facingYou are here |  IQ-CAM MC30Forward video safetySee IQ-CAM MC30 |  IQ-CAM ME40Four-channel + ADASSee IQ-CAM ME40 |
|---|---|---|---|
| What it is for | |||
| Best for | Fleets that want both halves of a disputed claim answered | Delivery vans and small fleets that need forward proof, fast | Long-haul and high-risk fleets where the blind spots cause the claims |
| What it tracks | Vehicles, the road, and the driver | Vehicles and the road ahead | Vehicles, the road, the cab, and both sides |
| Cameras and coverage | |||
| Camera channels | 2 built in, plus up to 4 auxiliary | 2 channel, road-facing | 4 channel: forward, cabin, side, rear |
| Road-facing video | 1080p, adjustable angle | 1080p forward proof | 1080p forward, part of the 360° set |
| Cab-facing video | Built in, 720p with infrared | Optional add-on camera, not fitted as standard | Built in, with driver monitoring |

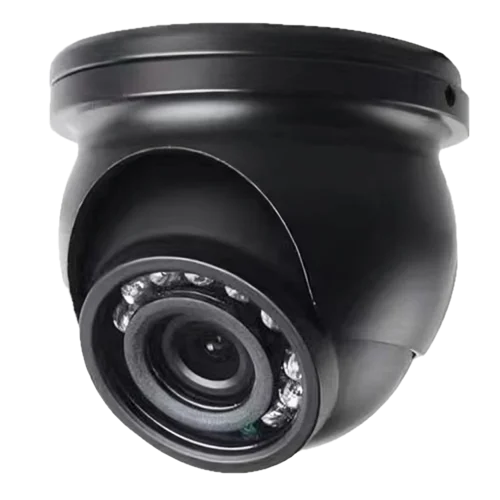

| Side, rear and dome cameras | Up to 4 auxiliary cameras | Optional side or cargo camera | Optional side, rear and mini-dome |
| 360° blind-spot coverage | – | – | ✓ |
| Onboard footage retention | microSD behind an anti-tamper panel | About 14 days on a 128 GB card | About 4 weeks on a 512 GB card |
| What the camera watches for | |||
| ADAS: collision and lane departure | – | – | ✓ |
| DMS: distraction and fatigue | Machine-vision distraction detection | – | Full driver monitoring, real-time |
| Live multi-channel view in the app | Live video and snapshots | Live view, single channel | Live view across all channels |
| Install | |||
| Typical install time | Professional fit, booked around your schedule | About 15 minutes on an OBD or power connector | Professional fit, add-on cameras at the same visit |
| Power | |||
| Power source | Vehicle, 12V to 24V hardwired | OBD or power connector | Vehicle, hardwired |
| Positioning and network | |||
| How it reports position | GPS with AGPS | Built-in GPS | Built-in GPS |
| Cellular | 3G and 4G LTE | 4G LTE | 4G LTE |
| Environment | |||
| Operating temperature | 0°C to +70°C | Cab rated | Cab rated |
| Size | 115 x 70 x 51 mm | – | – |
| Every AirIQ product | |||
| Solution sheet | IQ-CAM sheet | MC30 sheet | ME40 sheet |
Only the lines where these 3 differ are shown. Everything they share, including the dashboard and month-to-month terms, is on the full comparison.
Tech specs
IQ-CAM-12, in full.
Cameras
- Front camera
- 1080p HD, adjustable viewing angle
- Driver-facing camera
- 720p HD with integrated IR for night vision and distracted-driving detection, adjustable viewing angle
- Additional cameras
- Connects up to 4 additional cameras
Detection
- Driver events
- Distracted driver, harsh braking, rapid acceleration, speeding, sharp turns
- Location events
- Geofence detection
- Manual
- Event trigger button (SOS)
- Integrity
- Tamper alert, jolt and vibration detection
Connectivity
- Network
- Global bands, 3G and 4G LTE
- Positioning
- GPS with AGPS assistance
Power and battery
- Input
- 12V to 24V via hardwire kit
- Battery
- Integrated. On power disconnect the camera enters standby and records event video only if there is a sudden jolt while the vehicle is off
Physical
- Dimensions
- 115 x 70 x 51 mm
- Operating temperature
- 0°C to +70°C
- Storage temperature
- -10°C to +85°C
- Anti-tamper
- SD card and SIM card access locked behind an anti-tamper panel with a proprietary screw
Transcribed from the AirIQ IQ-CAM-12 spec sheet. IQ-CAM-12 is the dual-facing model in the IQ-CAM family.
All specifications are typical and subject to change without notice.
Take it with you
Solution sheet
One page, no form. Forward it to whoever signs off on the fleet budget.
IQ-CAM-12 questions
Asked about the IQ-CAM-12.
Is IQ-CAM-12 the same as the MC30 or the ME40?
No. They are three different cameras in the IQ-CAM family. IQ-CAM-12 is the dual-facing unit with machine vision on the cab, the MC30 is road-facing only and installs in about 15 minutes, and the ME40 runs four channels with ADAS and DMS. The difference table above lays out every line where they part ways.
Does it work without cell coverage?
Yes. If connectivity drops, IQ-CAM buffers roughly 4 hours of GPS data and 1 GB of video locally, then uploads when coverage returns. GPS updates every 5 seconds while online.
Will my drivers accept a camera pointed at the cab?
Framing matters. The cabin lens is the half of the evidence that protects the driver's record and their CDL when the other party's story is wrong. Coaching workflows recognize good driving, not just exceptions.
How is footage shared with an insurer?
Driver-caused events upload themselves to your dashboard, so the clip is waiting for you. Open the event, download it, and send it to your adjuster. Incident alerts reach you by text or email as it happens.
Is there a contract?
No. Like everything AirIQ sells, IQ-CAM is month-to-month with no long-term contract and no early-termination fee.
Put the IQ-CAM-12 on one vehicle. See for yourself.
We'll show you what it reports and what the dashboard does with it on a live demo, then you decide. No contract either way.
